$49.50
plus
shipping (see below)
Do
you have a line level source (TV audio, MP3 player, video game etc)
which simply isn't loud enough? One that forces you to crank up your
receiver or amp volume control, simply to match your other sources?
Or perhaps you need to run a long line between your TV audio line out
and your receiver on the other side of the room, but find too much
level is lost, or worse, interference from hum or a radio station is
induced. This product is the fix. The TC-780LC provides up to 20dB of
gain with any line level source, allowing longer cable runs or that
"bump" you need to cure low volume issues. Used in series following one
of our phono preamps (see the middle illustration at the right), the
TC-780LC can be used to compensate for low output phono cartridges
(B&O MMC series owners, take note!), so that you don't have to
crank the volume every time you play a record. Or you can use it to add
a volume control between a line level source and a power amp which has
no level adjustment of its own. The 5-pin DIN in/out jacks match those
found on older European brands including Bang & Olufsen, Tandberg
and Revox,
while the RCA jacks match virtually everything else.
Connecting to
the front panel miniplug jack automatically bypasses the rear inputs,
allowing temporary hookup of iPods and MP3 players for listening or
recording. Now available in both BLACK and SILVER! Click on the images
to enlarge.
|
If connecting to a
computer, simply substitute it in the diagram for the amplifier shown
below.
Use the sound card's LINE INPUT jack, NOT
the MIC IN.
Click on the diagram to enlarge.

Any of the following labelled
amplifier/receiver/minisystem input jacks can be used; AUX, TAPE
IN/PLAY, LINE
IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD (use the L&R AUDIO jacks so labelled; ignore the actual
yellow VIDEO jack
if present).

The TC-780LC is NOT intended for mobile use; connecting it to a vehicle
electrical system causes specific internal damage which is not covered by warranty.
Our TC-780i model is recommended for mobile / vehicle applications.
|

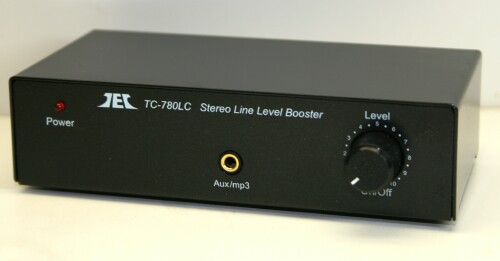

Black Version

$49.50 plus
shipping

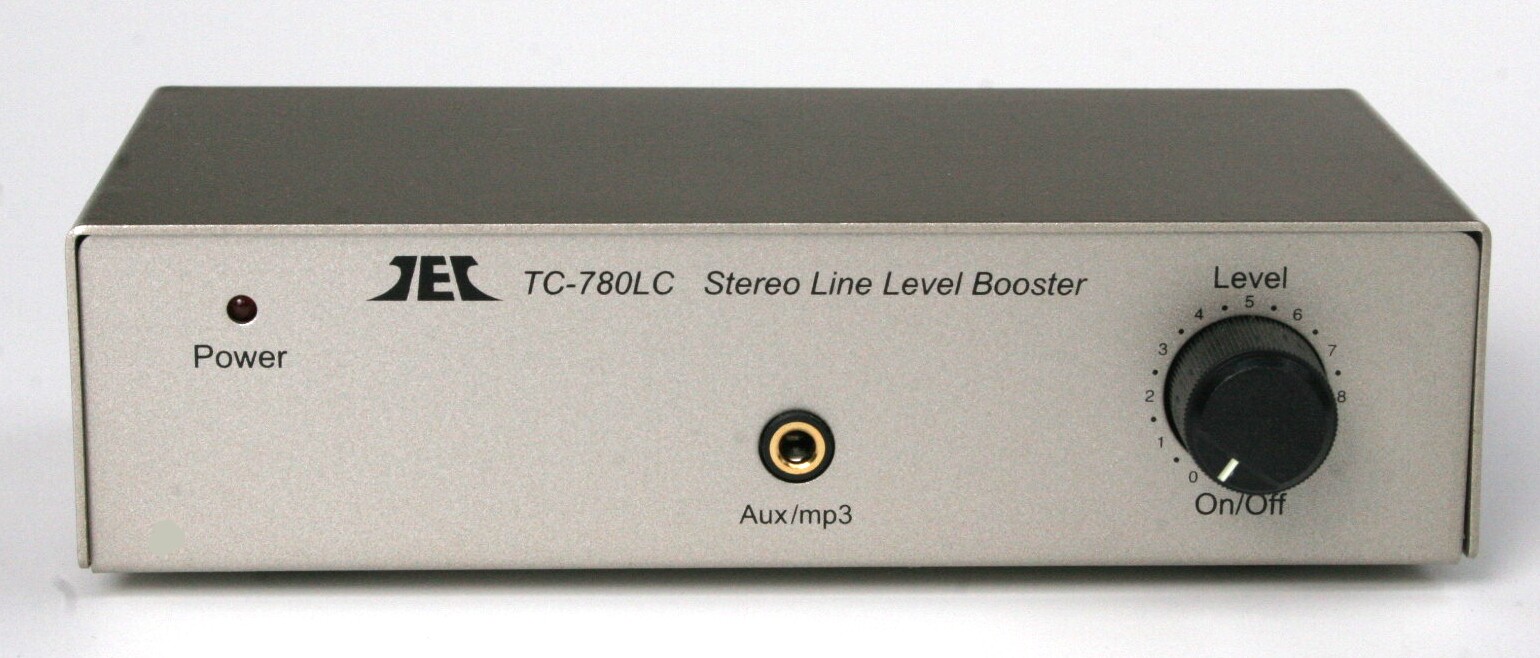

Silver Version

$49.50 plus
shipping
|
- freq response
20hz-20,000hz +/- 0.5dB, S/N ratio >80dB
- CE
certified;
LED power indicator
- gold
plated
jacks and
black anodized metal casing
- 150mV
input produces 2.0V output (at max volume setting)
- both
RCA
and DIN (5 pin) inputs and outputs
- Front
panel stereo
minijack for connecting MP3s, iPods
- Power
switch (on
level control)
- 12
volt DC
operation;
will work anywhere in the world
- AC adaptor is included
- Dimensions
180mm x
73mm x 37mm
- One
year defective
repair or exchange warranty
|
|
